Crane Display & Control Module

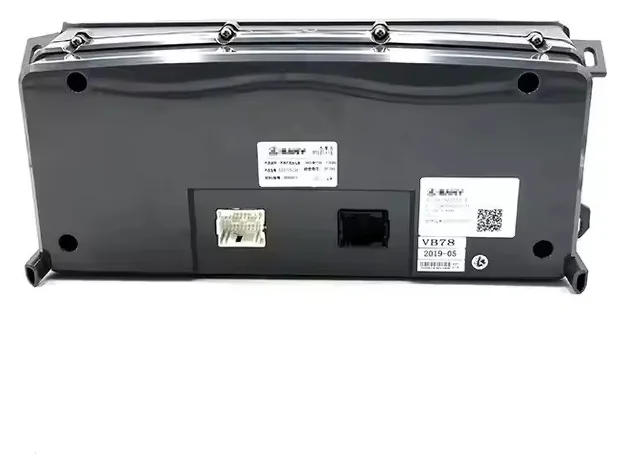

In-cab colour display and controller showing load chart, boom geometry and machine diagnostics over CAN bus.
Specification
| Display | Backlit colour TFT, sunlight readable |
|---|---|
| Communication | CAN bus (J1939 / CANopen) |
| Supply | 12 / 24 V DC |
| Operating temperature | -20 °C to +70 °C |
| Protection | IP65 front face |
| Supplied with | Harness connector kit and mounting bracket |
Typical specification for this component family. The exact variant is confirmed against your machine's make, model and serial number at quotation.
About this part
The in-cab display is the operator's window onto the safe load indicator: it renders the active load chart, boom length and angle, working radius, actual and permitted load, and the fault codes raised by the machine controller.
We supply replacement displays and controllers along with the wiring harnesses, connectors and mounting brackets. A replacement unit generally needs the correct load chart set loaded for the machine and boom configuration, which we can arrange as part of the supply.
Provide the crane make, model, serial number and a photograph of the label on the rear of the existing unit so the software variant is matched correctly.
Ordering information
To quote accurately we need the equipment make, model and serial number, plus the part number or a photograph of the component and its nameplate.
