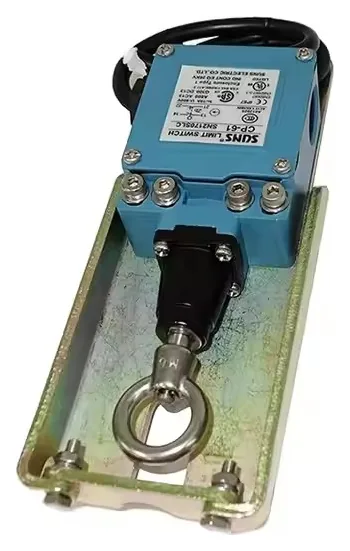

Boom Length & Angle Sensor
Cable-reel length transducer with integrated angle sensor, feeding boom geometry to the safe load indicator.
Specification
| Measurement | Cable reel length transducer + inclinometer |
|---|---|
| Output | 4–20 mA, 0–10 V or CAN |
| Cable length options | 15 m, 20 m, 30 m, 40 m |
| Angle range | -10° to +85° |
| Supply | 12 / 24 V DC |
| Protection | IP66/IP67 housing |
Typical specification for this component family. The exact variant is confirmed against your machine's make, model and serial number at quotation.
About this part
The length and angle sensor is mounted at the boom foot and pays out a stainless steel cable along the boom as it telescopes. A potentiometer or encoder inside the reel converts cable travel into boom length, while an integrated inclinometer reports boom angle to the safe load indicator.
If the SLI shows an implausible radius, refuses to arm, or reads the wrong length after re-reeving, this sensor and its cable are the first place to look. We supply complete reel assemblies, replacement measuring cables, springs, slip rings and connector kits.
Sensors must be re-calibrated against the machine's load chart after fitting.
Ordering information
To quote accurately we need the equipment make, model and serial number, plus the part number or a photograph of the component and its nameplate.
