Typical fitment

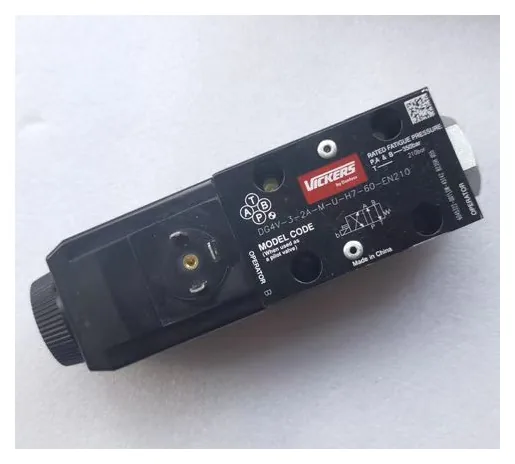

Solenoid Directional Control Valve
Subplate-mounted 4/3 and 4/2 solenoid valves for pilot, outrigger and auxiliary control circuits.
Specification
| Sizes | NG6 (CETOP 3 / D03), NG10 (CETOP 5 / D05) |
|---|---|
| Configuration | 4/3 and 4/2 way, spring-centred or detented |
| Coil voltage | 12 V DC, 24 V DC, 110/230 V AC |
| Max pressure | 350 bar (P, A, B), 210 bar (T) |
| Protection | IP65 with correct connector fitted |
| Options | Manual override, emergency operation button |
Typical specification for this component family. The exact variant is confirmed against your machine's make, model and serial number at quotation.
About this part
Solenoid directional valves switch the pilot and auxiliary circuits that control outriggers, boom locks, counterweight cylinders and cooling fans. They are a common failure point simply because they cycle constantly and sit exposed to vibration, moisture and dirt.
We hold subplate-mounted valves in NG6 (D03) and NG10 (D05) sizes with the usual spool configurations, plus replacement coils, connector kits, manual override buttons and mounting subplates. Coils are available in 12 V and 24 V DC as well as AC variants.
Quote the spool code stamped on the valve body and the coil voltage and we will match it directly.
Ordering information
To quote accurately we need the equipment make, model and serial number, plus the part number or a photograph of the component and its nameplate.
