Typical fitment

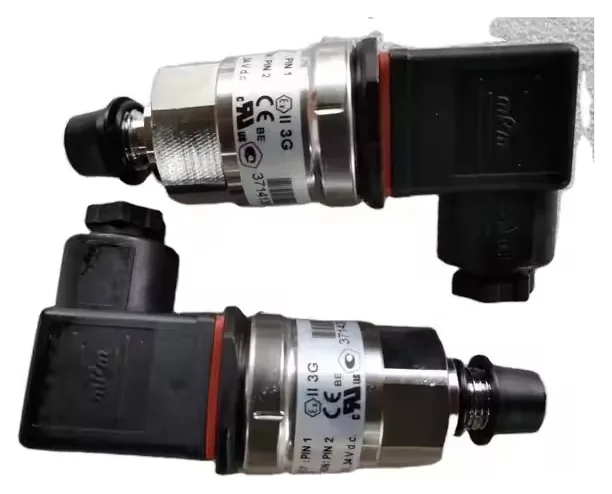

Hydraulic Pressure Switch Set
Adjustable pressure switches that trigger interlocks, warning lamps and pump control at a set circuit pressure.
Specification
| Type | Piston or diaphragm, adjustable set point |
|---|---|
| Pressure ranges | 10 – 50, 30 – 150, 50 – 400 bar |
| Contact | SPDT changeover, N/O or N/C |
| Connection | DIN 43650 form A |
| Port thread | G1/4, M12 x 1.5 or 1/4 NPT |
| Protection | IP65 |
Typical specification for this component family. The exact variant is confirmed against your machine's make, model and serial number at quotation.
About this part
Pressure switches sit at the boundary between the hydraulic and electrical systems: they close or open a contact when circuit pressure crosses a set point, driving brake interlocks, warning lamps, pump unloading and safety cut-outs.
We supply adjustable and fixed set-point switches with DIN 43650 connectors, in the pressure ranges normally fitted to crane brake, pilot and main circuits. Piston-type switches are used for high-cycle applications and diaphragm types where fine set-point repeatability matters.
Match the port thread, pressure range and switching function (normally open or normally closed) when ordering.
Ordering information
To quote accurately we need the equipment make, model and serial number, plus the part number or a photograph of the component and its nameplate.
